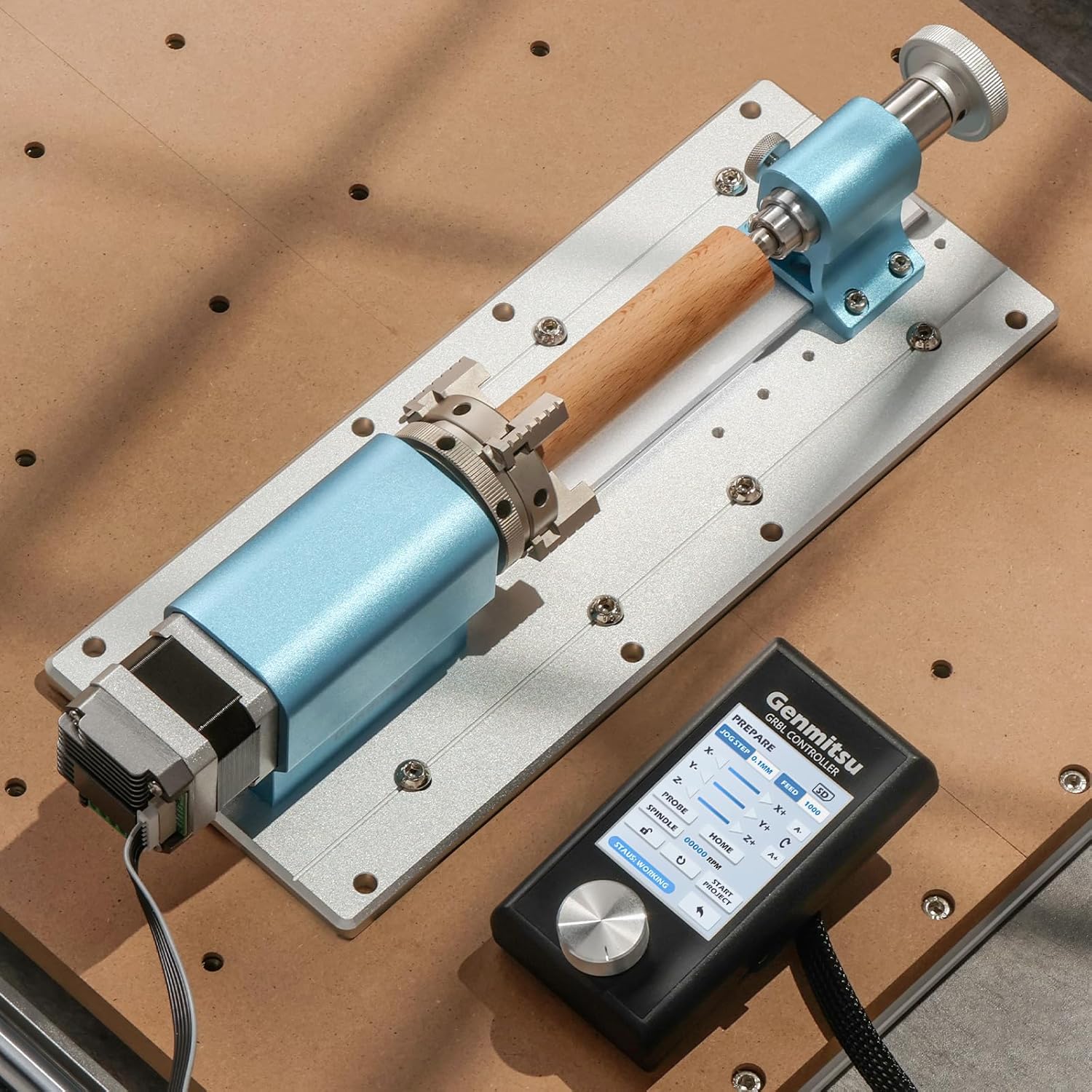

Genmitsu 4th Axis Rotary Module for 4040 and 3030 Series CNC Machines with Planetary Geared Stepper Motor, 4 Jaw Chuck, Clamped Range 10-200mm

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]

Product description

NEMA17 Planetary Geared Stepper Motor

Improved accuracy that outperforms other belt-driven rotary modules on the market.

10:1 Reduction Ratio

Ensures precise control, delivering a MIN angle of 0.1° and a MAX angular speed of 300° per second.

Quickly set up for different lengths and diameters, ensuring flexibility for all your CNC projects.

1 Superior Performance

2 Precise Control

3 Simple Length Adjustment

Flexible Mounting Solutions

The 4-axis rotary module’s clamp with forward and reverse mounting options for a wider range of sizes.

Forward Mounting: 2-22mm

Reverse Mounting: 18-50mm

Clamped Material Size With Tailstock Length: 10-120mm, Without Tailstock Length: 10-200mm Clamped Material Diameter Forward Mounting: 2-22mm; Reverse Mounting: 18-50mm Tailstock Spacing Adjustment 5 installation positions, each position spacing is 20mm, and the range of adjustment is 10-120mm. Tailstock Center Adjustment 0-30mm Direct Electric Motor NEMA17 Planetary Geared Stepper Motor Gear Ratio 10:1 Max Rotate Speed 300°/S Center Height 50mm Size 380 x 125 x 86mm (14.96” x 4.92” x 3.39”)

Discover the Possibilities: The Genmitsu 4th Axis Rotary Module Kit is a drop in upgrade that enables your 4040-PRO, 4040 Reno, 3030-PROVer MAX CNC machine to carve from different angles and positions or with the right software full rotary carving. The 4th axis allows for the creation of complex parts with curved or angled features that are not achievable with a traditional 3-axis CNC machine. Additionally, the G-code for the 4th axis must be sent using an offline controller (ASIN: B0C582HQ6Z), which should be ordered together with the 4th axis to ensure proper functionality (For the 4040-PRO only, the 3030-PROVer Max comes with the offline controller already installed.)
NEMA17 Planetary Geared Stepper Motor: Take advantage of the high torque provided by the NEMA17 motor, which allows the motion system to rotate workpieces with more force and precision than any other belt-driven rotary modules on the market.
Versatile dimensions: Adapt to various project requirements with a center height of 50mm, total height of 86mm, and material lengths with tailstock from 10-100mm; without tailstock from 10-200mm for flexibility. Applicable Material diameter: 2-50mm.
Precision Control: Utilize the 10:1 reduction ratio for precise control, offering a minimum angle of 0.1° and a maximum angular speed of 300° per second, ensuring high speed and unparalleled accuracy.
Software & Controller: To use a 4th axis on your CNC machine, you will need CAD/CAM software that can generate toolpaths for rotary motion. While options like Fusion 360 and Vectric are recommended, it’s important to note that most software capable of generating 4th axis toolpaths is not free.
